01 Binary orbit

In this example, we demonstrate how to:

• Output simulation information on the run
• Estimate properties of binary orbit and config the simulation
• Manually generate binary stars
• Plot orbits with gapping
• Add a background force field
• Integrate elliptic orbits

Circular binary

using AstroIO
using AstroPlot
using AstroPlot.ColorSchemes
using Colors
using CSV, DataFrames

using Plots
pyplot() # Need PyPlot to be installed

using AstroNbodySim
using PhysicalParticles
using Unitful, UnitfulAstro
astro()
mkpathIfNotExist("output")

function plot_orbit_with_gap(sim::Simulation, title::String, gap::Int = 1; resolution = (800,800), kw...)
    df = DataFrame(CSV.File(joinpath(sim.config.output.dir, "analysis.csv")))
    x = df.x
    y = df.y

    title *= " of every $(gap) orbit(s)"

    count = 0
    flip = 0
    Head = 1
    last_sign = sign(y[1])

    plot_x = []
    plot_y = []
    for i in 1:length(y)
        @inbounds new_sign = sign(y[i])
        if new_sign != last_sign    # half cycle
            flip += 1
            last_sign = new_sign

            if flip % 2 == 0        # full cycle
                count += 1
                if count % gap == 0 # plot this cycle
                    push!(plot_x, x[Head:i])
                    push!(plot_y, y[Head:i])
                    count = 0       # Reset gap
                end
                Head = i            # start of cycle
            end
        end
        # do nothing
    end

    p = Plots.plot(plot_x, plot_y,
        aspect_ratio = 1, legend = nothing, xlabel = "x [kpc]", ylabel = "y [kpc]",
        size = resolution,
    )
    savefig(p, "output/" * title * ".png")
    @info "Total orbits: $(div(flip, 2))"
    @info "Steps per orbit: $(length(y) / div(flip, 2))"
    @info "Figure has been saved to " * title * ".png"
    return df
end

analysers::Dict has full access to simulation data. The key values are functions that return one printable value, and they will be written in analysis.csv. Here we find one of the particle and output its x- and y- coordinates.

p1x(sim::Simulation) = find_particle(sim, 1).Pos.x
p1y(sim::Simulation) = find_particle(sim, 1).Pos.y

analysers = Dict(
    "x" => p1x,
    "y" => p1y,
)

Now we estimate the orbit properties and set up the simulation

G = Constant(uAstro).G
mass = 1.0e10u"Msun"
D = 2.0u"kpc"

binary_orbit_period(mass, D) = 2 * pi * sqrt(0.5 * D^3 / G / mass)

binary_rot_vel(mass, D) = sqrt(G * mass / D / 2.0)

vel = binary_rot_vel(mass, D)
T = binary_orbit_period(mass, D)

@info "Estimated Period: $(T)"
@info "Estimated Rotation Vel: $(vel)"

# Define the two particles
data = StructArray(Star(uAstro, id = i) for i in 1:2);
data.Pos[1] = PVector(+0.5D, 0.0u"kpc", 0.0u"kpc");
data.Pos[2] = PVector(-0.5D, 0.0u"kpc", 0.0u"kpc");
data.Vel[1] = PVector(0.0u"kpc/Gyr", +vel, 0.0u"kpc/Gyr");
data.Vel[2] = PVector(0.0u"kpc/Gyr", -vel, 0.0u"kpc/Gyr");
data.Mass .= mass;

# Define simulations
function compute_dt(a::Number; SofteningLength = 0.0001u"kpc", ErrTolTimestep = 0.025)
    return sqrt(2 * ErrTolTimestep * SofteningLength / abs(a))
end

TimeStep = compute_dt(G*mass/D^2)
TimeEnd = T * 1.01
TimeBetweenSnapshots = TimeEnd

circular = Simulation(
    deepcopy(data);
    analysers,
    TimeEnd,
    TimeStep,
    TimeBetweenSnapshots,
    OutputDir = "output/BinaryCircular",
);
run(circular)
plot_orbit_with_gap(circular, "Binary Circular")

Massless circular binary with background force field

mass = 0.5e10u"Msun"
R = 1.0u"kpc"

binary_orbit_period(mass, R) = 2 * pi * sqrt(R^3 / G / mass)
binary_rot_vel(mass, R) = sqrt(G * mass / R)

vel = binary_rot_vel(mass, R)
T = binary_orbit_period(mass, R)

@info "Estimated Period: $(T)"
@info "Estimated Rotation Vel: $(vel)"

# The only difference is that the particles have no mass, so they cannot produce any mutual forces
data = StructArray(Star(uAstro, id = i) for i in 1:2);
data.Pos[1] = PVector(+R, 0.0u"kpc", 0.0u"kpc");
data.Pos[2] = PVector(-R, 0.0u"kpc", 0.0u"kpc");
data.Vel[1] = PVector(0.0u"kpc/Gyr", +vel, 0.0u"kpc/Gyr");
data.Vel[2] = PVector(0.0u"kpc/Gyr", -vel, 0.0u"kpc/Gyr");

# Define the background force field
attractor(p::AbstractParticle) = -G * mass / (p.Pos * p.Pos) * normalize(p.Pos) / 1.0u"kpc"
bgforce = Function[attractor]

TimeEnd = T * 1.01
TimeStep = compute_dt(G*mass/R^2)
TimeBetweenSnapshots = TimeEnd

bg = Simulation(
    deepcopy(data);
    bgforce,
    analysers,
    TimeEnd,
    TimeStep,
    TimeBetweenSnapshots,
    OutputDir = "output/bgforce",
);
run(bg)

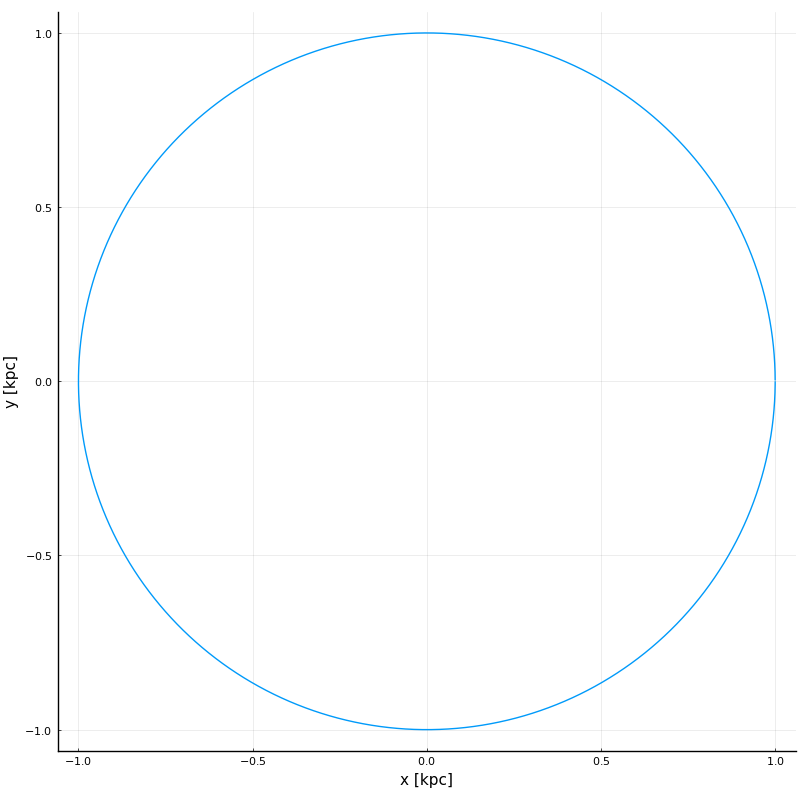

plot_orbit_with_gap(bg, "Binary Circular with bgforce")

Elliptic orbit precision

R = 1.0u"kpc"
mass = 1.0e8u"Msun"

e = 0.9

vel = sqrt((1.0-e)*G*mass/R)
@info "Velocity at ap: $(vel)"

a = ellipticSemiMajor(G, mass, R, vel)
@info "Length of semi-major axis: $(a)"

T = ellipticPeriod(G, mass, a)
@info "Period of elliptical orbit: $(T)"

data = StructArray(Star(uAstro, id = i) for i in 1:2)
data.Mass[2] = mass

data.Pos[1] = PVector(R, 0.0u"kpc", 0.0u"kpc")
data.Vel[1] = PVector(0.0u"kpc/Gyr", vel, 0.0u"kpc/Gyr")


NumOrbits = 200
TimeEnd = NumOrbits * T * 1.001
TimeBetweenSnapshots = TimeEnd

# Adaptive timesteps
elliptic_adapt = Simulation(
    deepcopy(data);
    analysers,
    TimeEnd,
    ErrTolTimestep = 0.05,
    TimeBetweenSnapshots,
    ForceSofteningTable = [0.001u"kpc" for i in 1:6],
    OutputDir = "output/EllipticOrbitAdapt",
)
run(elliptic_adapt)

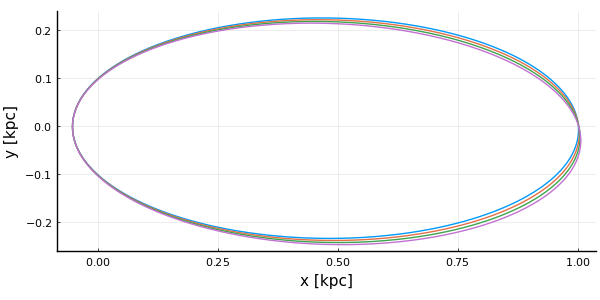

df = plot_orbit_with_gap(elliptic_adapt, "Elliptic Orbit (adaptive)", 40, resolution = (600,300))

# Fixed timesteps
Δt = df.time[2:end-1] .- df.time[1:end-2]
elliptic_const = Simulation(
    deepcopy(data);
    analysers,
    TimeEnd,
    TimeStep = minimum(Δt) * u"Gyr",
    ErrTolTimestep = 0.1,
    TimeBetweenSnapshots,
    ForceSofteningTable = [0.01u"kpc" for i in 1:6],
    OutputDir = "output/EllipticOrbitConst",
)
run(elliptic_const)

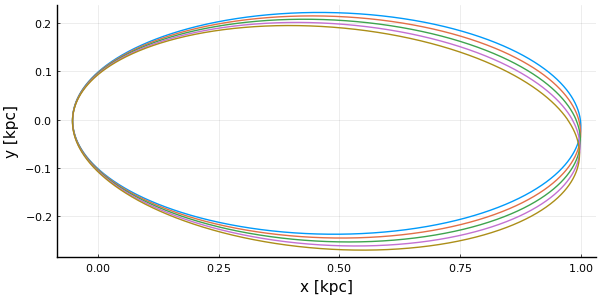

df = plot_orbit_with_gap(elliptic_const, "Elliptic Orbit (const)", 40, resolution = (600,300))
